Model: FPS Model SS36 25575-18 Spiral Freezer
Serial #: n/a
Note: More pictures and specification upon request of quote.
- Enclosure Dimensions: 32'-0" Lx25'-0" W x 16'-9"H
- Layout Configuration: 90 degrees

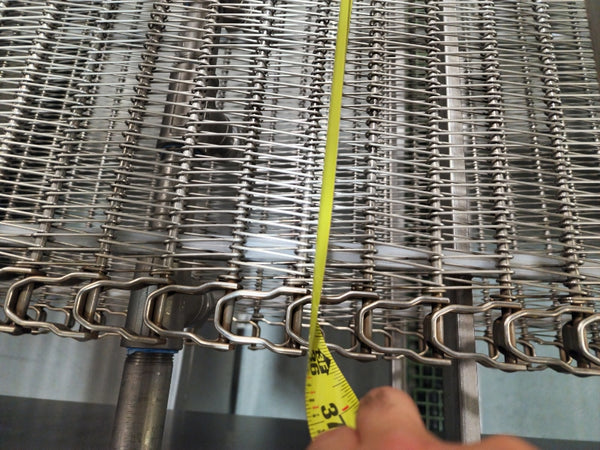

- Overall Belt Width: 36"
- Effective belt Width: 33"
- Numbers of tiers: 25.25
- Product Height Clearance: 3"
- Infeed Height: 2'-6"
- Discharge Height: 14'-7"
- Effective belt Length: 1360 ft
- Base Product A: Diced 3/4" potato cubes
- Throughput capacity: 10,000 lb/hr
- Infeed Temperature: +185F
- Discharge Temperature: +35F (equilibrated)
- Main Power Supply: 460V/3ph/60Hz
- Control Power Supply: 24V DC
- Separated Light Supply: 110V
- Circulation Fan motor: 4 x 30 hp (on VFDs)
- Air Balance Fan Motor: 1 x 2hp
- Belt Drive: 1 x 2hp
- Drum Drive: 1 x 15 hp
- Refrigeration requirement: 164 TR
- Evaporator Temperature: 0F (on back pressure regulator)
- Number of coils: 4
- Refrigeration Feed: R717 4:1 liquid pump recirculated
- Defrost Method: Sequential hot gas defrost
