ID: 334053
Model: SS42-25538-1.8
Serial: n/a
Product Detail:
- SPIRAL FREEZER WITH A 42” WIDE BELT
- 25 TIERS FOR FREEZING 8,000 LBS. / HR. OF PAR FRIED B&B PLANT-BASED NUGGETS FROM AN INFEED TEMPERATURE OF +130⁰F SURFACE/+45⁰F CORE TO A DISCHARGE TEMPERATURE OF 0⁰F EQUILIBRATED
- 42” INTRALOX 2900 SERIES MODULAR BELTING+ METAL/X-RAY DETECTABLE MATERIAL+ DIRECT DRIVE SYSTEM
DEFROST SYSTEM:
- SHIFT TYPE HOT GAS DEFROST DESIGN
ENCLOSURE:

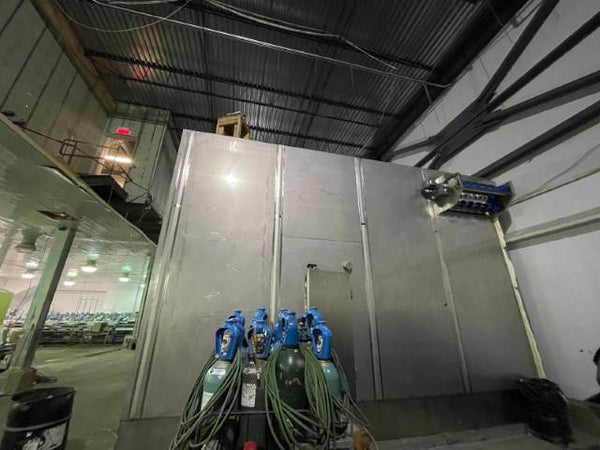

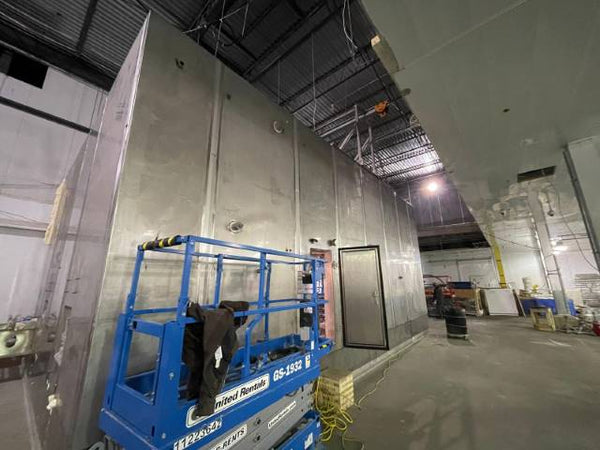

- FULLY TIG WELDED SS304 STAINLESS-STEEL ENCLOSURE
- EXTERNAL MOUNTED FAN MOTOR WITH ALUMINUM FAN WHEEL
- INTERIOR LED LIGHTING+ AIR BALANCE SYSTEM
CLEANING SYSTEM:
- RECIRCULATING CIP SYSTEM WITH PASTEURIZATION MODE
- STAINLESS STEEL TANK WITH SENSORS COMPLETE WITH SUPPLY AND RETURN PUMP, FILTERS, SUPPLY VALVES
- COMPREHENSIVE CIP SANITARY PIPING AND 360 SPINNING NOZZLES
